It's Gotta Go Somewhere

Course Map

Destinations are just that: Places where our data will end up once it passes through Stream.

important

Select the Data submenu and click Destinations.

As you can see here, Stream supports sending data to a wide range of destinations. The world is your oyster when it comes to data. To cost-effectively place our raw data in long-term storage, we will use Amazon S3. The data can then be easily reused or replayed at a later date, if needed.

note

Behind the scenes, the S3 storage used in the sandbox is actually MinIO. MinIO is better suited for our architecture of the sandbox environments.

Don’t be confused when you see references to MinIO in the coming steps.

Create a Destination

important

Create a new S3 destination

1. Click Amazon S3
2. On the top right, click Add Destination

Here we are met with a plethora of fields to fill out. Only a couple are mandatory, and the rest are pretty simple to explain.

• Output ID - This is the identifier that Stream uses internally so you know what you’re talking about when configuring other aspects of the UI.
• S3 Bucket Name - In the S3 storage area that IT configured, which specific area do you want to store your data in?
• Region - Where in the world is Carmen San Diego? And your AWS instance.
• Staging Location - Before we push the data to S3, where should a temporary copy be stored in case something happens?
• Key Prefix - For advanced users, add a prefix to your file paths.
• Partitioning Expression - Do you want Stream to put the logs in certain directories? If so, what’s the naming convention?
• Data Format - How should the data look when leaving Stream?
• File Name Prefix Expression - Do you want all the files to start with the same name?
• Compress - Should we compress the data when moving it to S3?
• Backpressure behavior - If we can’t reach S3, what should we do?

important

Fill out the fields for the S3 destination (if a field is not included, it can be left at the default value or blank)

• Output ID - archives3
• S3 Bucket Name - 'logarchives'
• Staging Location - /tmp/staging
• Key Prefix - 'stream'
• Region - US East (N. Virginia)

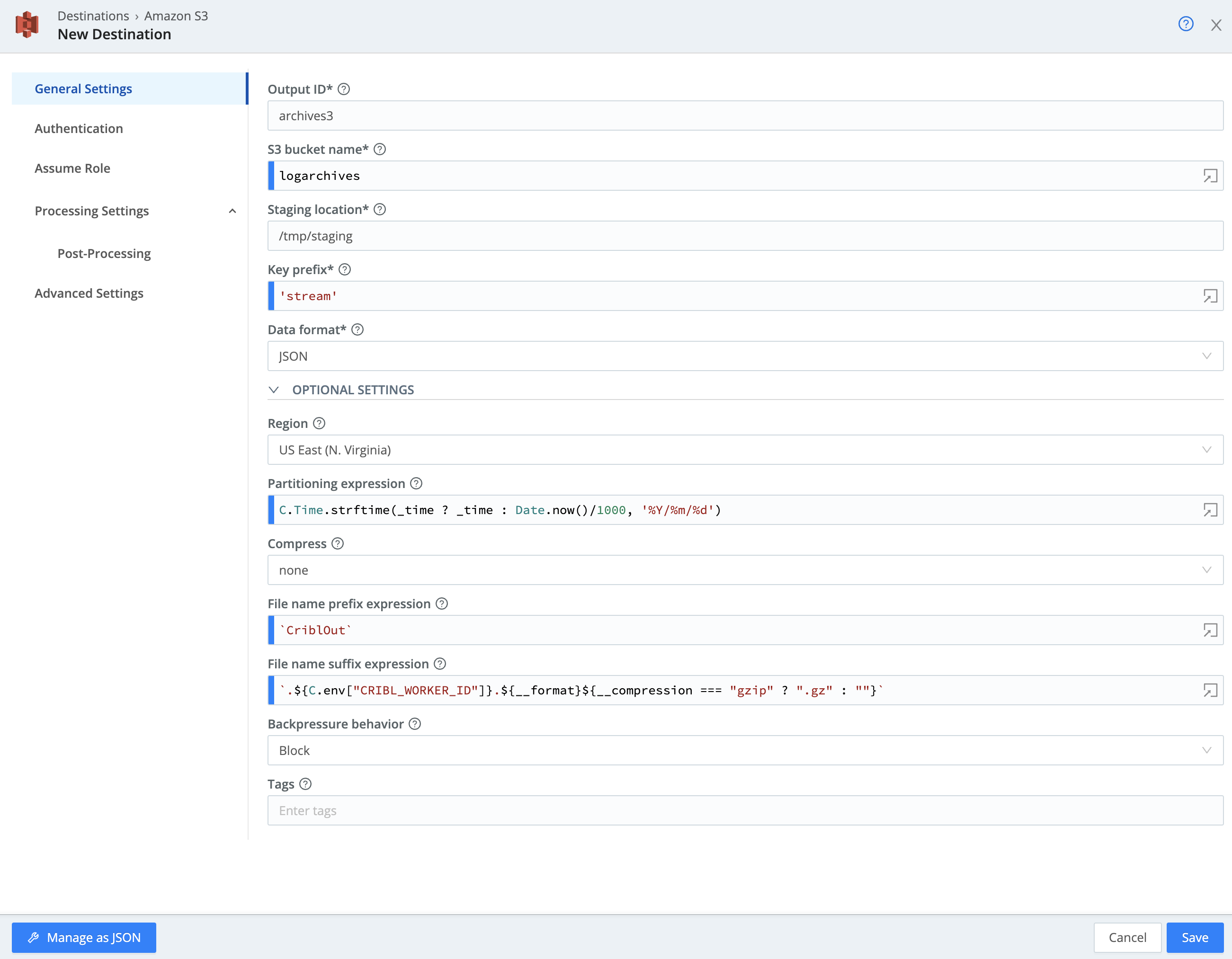

Your settings should look like the following:

Earlier, there was a note confessing that behind the scenes, this S3 deployment was actually MinIO under the covers. Well, because of this, we need to make two quick stops to finish configuring our Destination: The Authentication and Advanced Settings tabs.

important

Authentication Configuration

1. On the modal's left tab, click Authentication.

2. Under Authentication method select Manual.

3. Fill out the fields as follows:

   Access key	Secret key
   ACCESSKEY	SECRETKEY

Advanced Settings in S3

1. On the modal's left tab, click Advanced Settings
2. Under Endpoint enter http://minio:9000
3. Click Save

We can try to verify data flow again by clicking the Live button to the right of our S3 Destination. However, we haven't told Stream to send any data to our Destination, so nothing will show up. Let's go configure that shall we?
